EDU System | Transducer Module
PEM.EDU.SENS.X.X.01.A.XXX
Description:

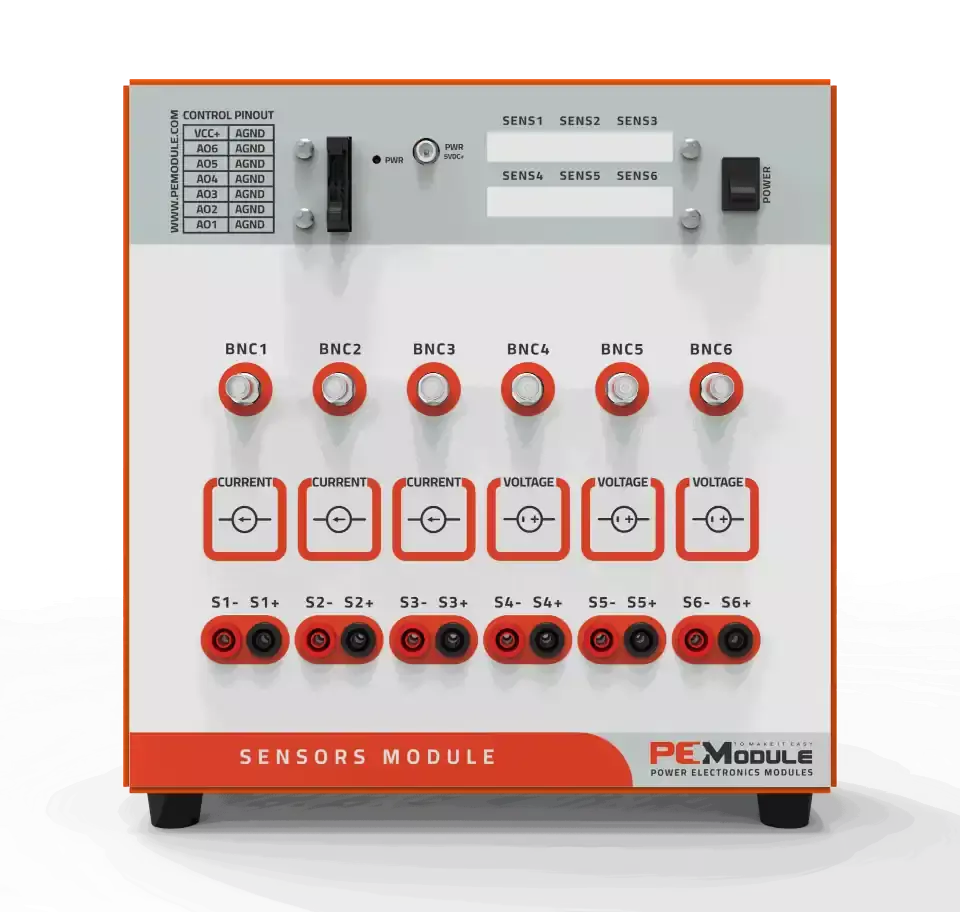

PEModule PLUGY EDU Transducer module is comprised 6 sensors: three fully isolated voltage transducers AC/DC capable of measuring voltages up to 400VRMS, and three fully isolated current transducers AC/DC capable of measuring currents up to 5ARMS, with a bandwidth of up to 200KHz.
Main Features:
- Versatile Transducer Options: Wide range of voltage and current ratings for high accuracy.
- Measurement Compatibility: Suitable for AC/DC waveforms.
- User-Friendly: Compatible with data acquisition, digital oscilloscopes, HIL, DSP, and microcontrollers.
- High Performance: 0.5% transducer linearity, 1% gain accuracy, 50 ppm/C temperature stability.
- Modular Design: Easy maintenance and upgrades.
- Connectivity: Safety-shouldered Power Banana connectors.
- Visibility: Transparent back cover.
- Durability: Heavy-duty, compact steel enclosure.
- Comprehensive: Includes three voltage and three current transducers.
Follow us

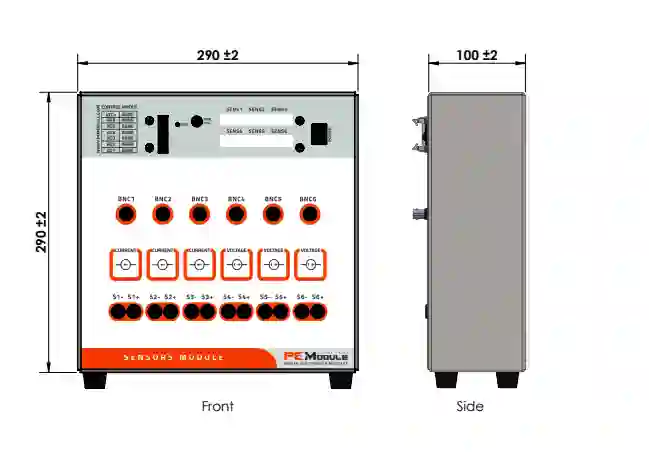

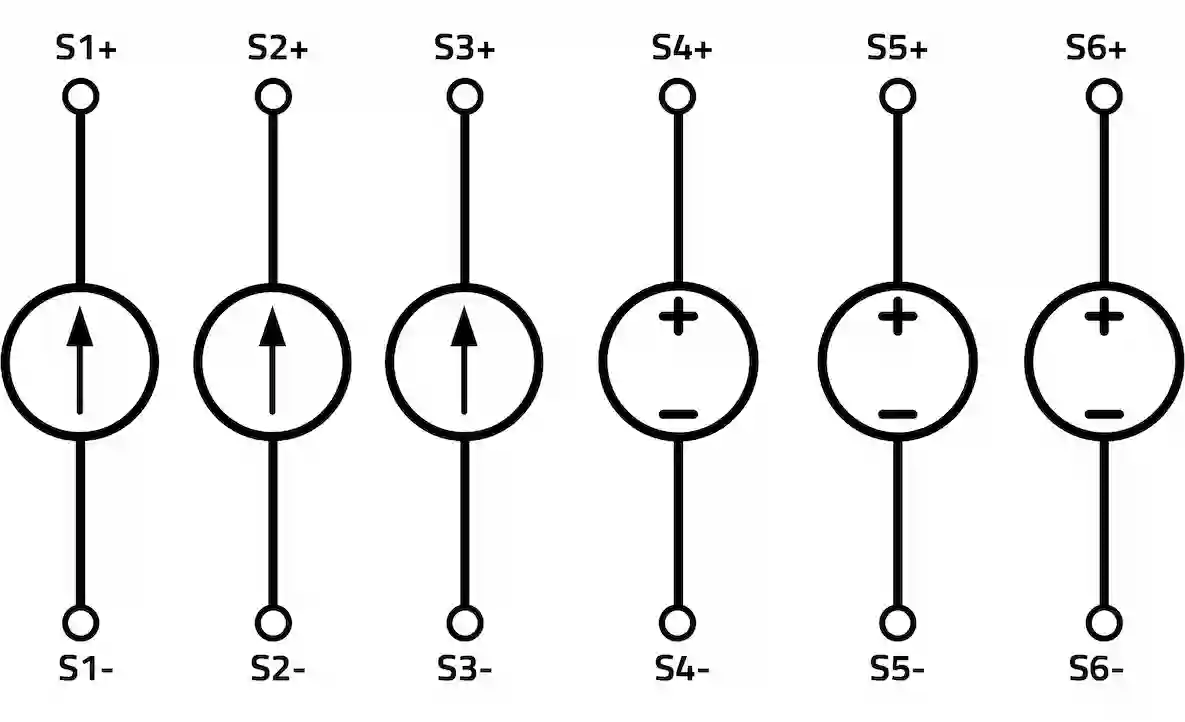

EDU Module Specifications
EDU Module Specifications
| Series | Sensor Type | Value |
|---|---|---|
| PEM.EDU.SENS.x.x.01.A.050.xx | Voltage | ± 50V |
| PEM.EDU.SENS.x.x.01.A.100.xx | Voltage | ± 100V |
| PEM.EDU.SENS.x.x.01.A.200.xx | Voltage | ± 200V |
| PEM.EDU.SENS.x.x.01.A.400.xx | Voltage | ± 400V |
| PEM.EDU.SENS.x.x.01.A.800.xx | Voltage | ± 800V |
| PEM.EDU.SENS.x.x.01.A.xxx.05 | Current | ± 5 A |
| PEM.EDU.SENS.x.x.01.A.xxx.10 | Current | ± 10 A |
| PEM.EDU.SENS.x.x.01.A.xxx.20 | Current | ± 20 A |
| PEM.EDU.SENS.x.x.01.A.xxx.40 | Current | ± 40 A |
* Accept custom resistance value
